AF系列精密斜齒行星減速機
描述：
我們的產品被廣泛應用在航空航天、數控機床、切割焊接設備、紡織印染機械、包裝機械、食品機械、醫療機械、艦船、雷達、數據通訊系統、機器人、機械手臂，復合材料設備、精密測試儀器、試驗機、塑料機械、玻璃機械、煤礦機械、起重機械、冶金機械、工程機械等各種領域。
關鍵詞：
減速機
減速機 / 行星減速機
AF系列精密斜齒行星減速機
詳情
AF系列減速機核心特性
The Core features of PEH series reducer
1.采用斜齒齒輪傳動，經滲碳淬火處理，齒向齒廓修形處理，確保運行低噪音、平穩;承載能力較直齒提高20%;
2.整體式輸出軸，行星輪兩端軸承支撐，實現高精度、高強度;
3.回程間隙小，單級可以做到3arcmin以內;
1. Helical gear transmission, carburizing and quenching treatment, tooth profile modification treatment, Ensure low noise and stable operation; The bearing capacity is 20% higher than that of straight teeth;
2. The integral output shaft is supported by bearings at both ends of the planetary gear to achieve high precision and high strength;
3. The return clearance is small, and the precision single stage can reach within 3 arcmin:

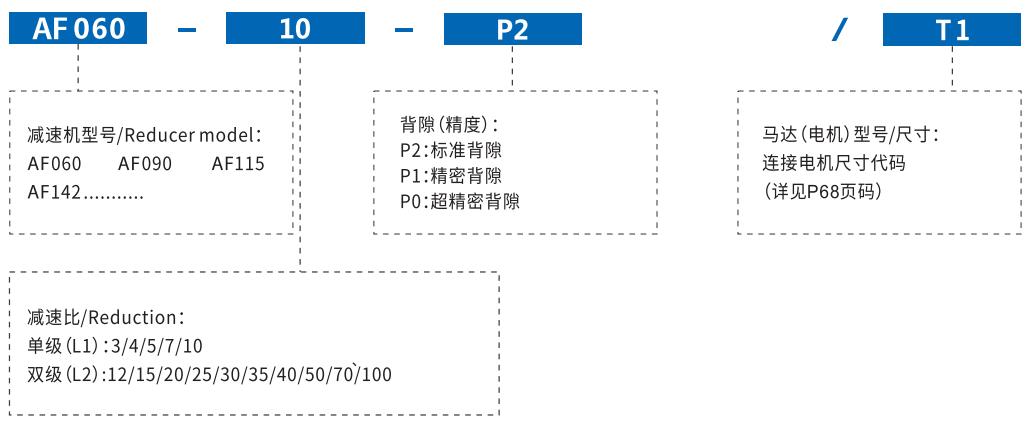

型號說明/ MODEL ILLUMINATE

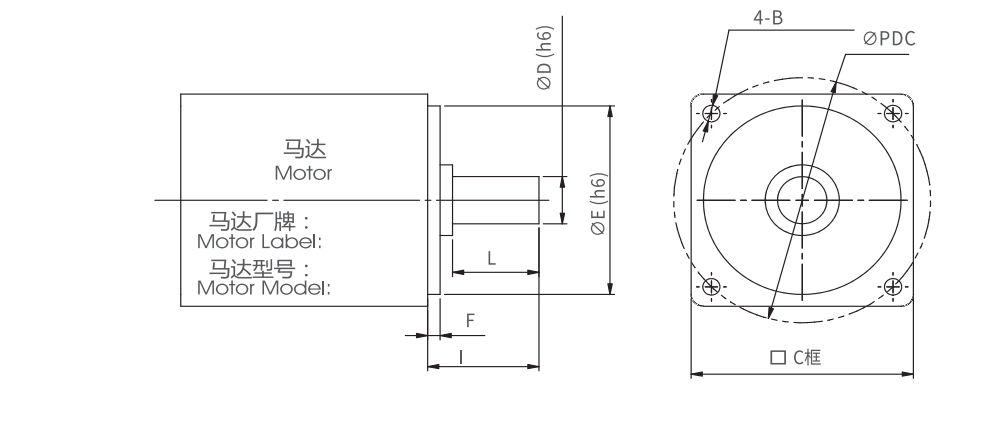

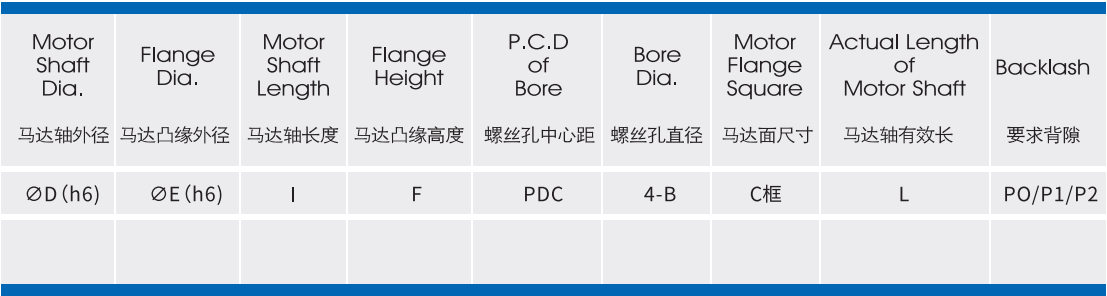

FILLINDATA OF MOTOR 客戶填寫資料

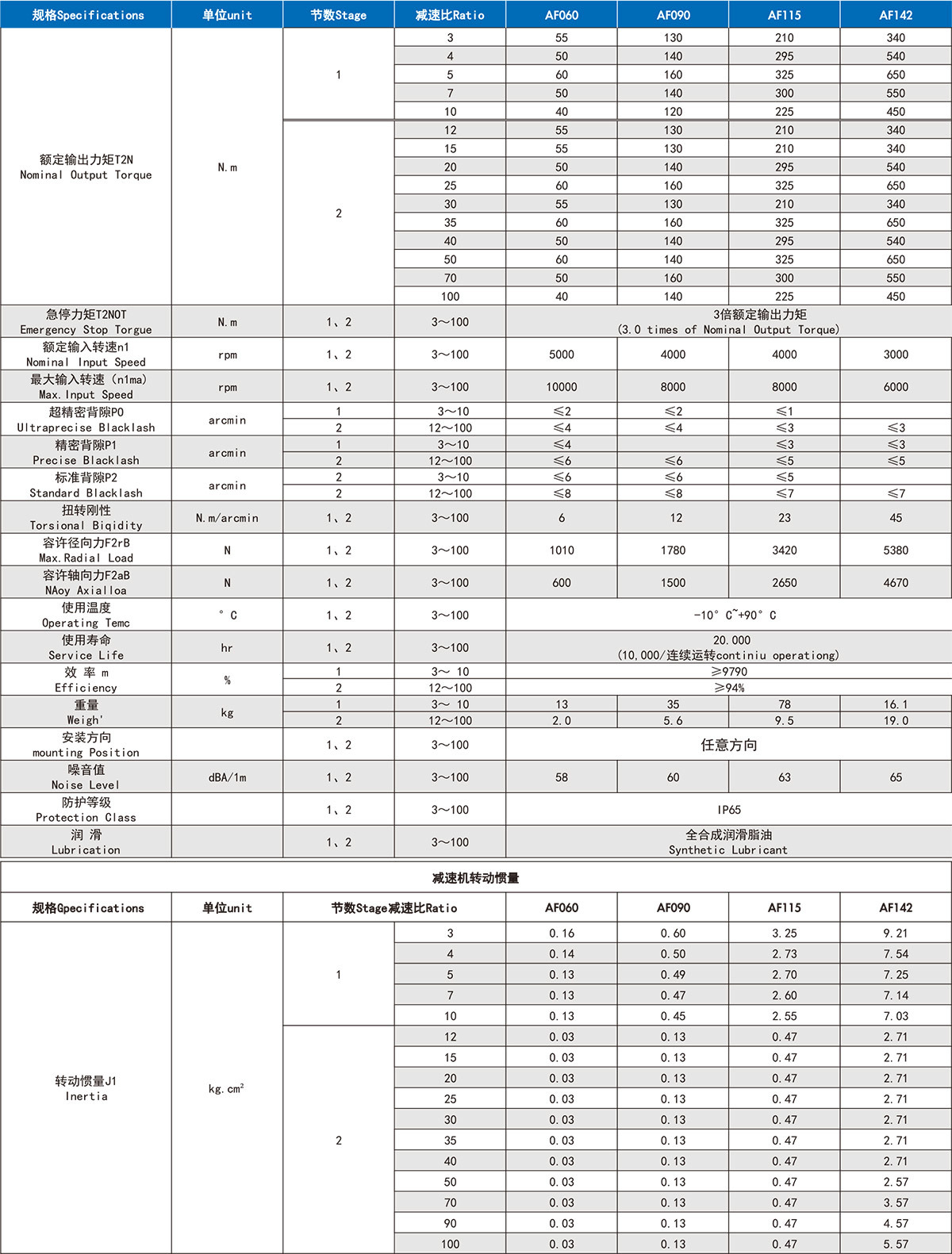

規格 SPECIFICATIONS
減速機性能資料/ GEAR BOX PERFORMANCE INFORMATION
外形尺寸圖表/ OUTLINE DIMENSION SHEET

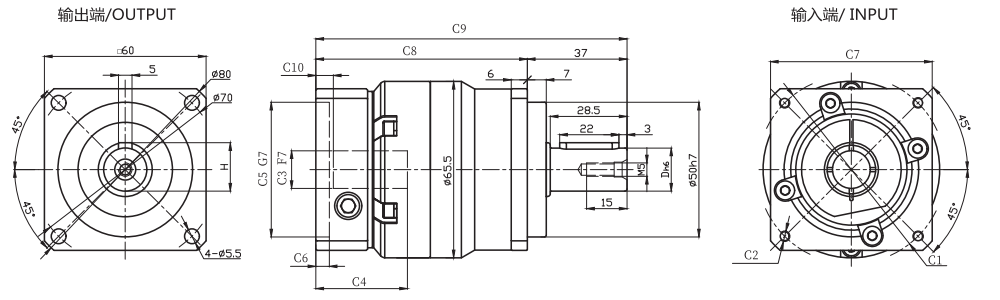

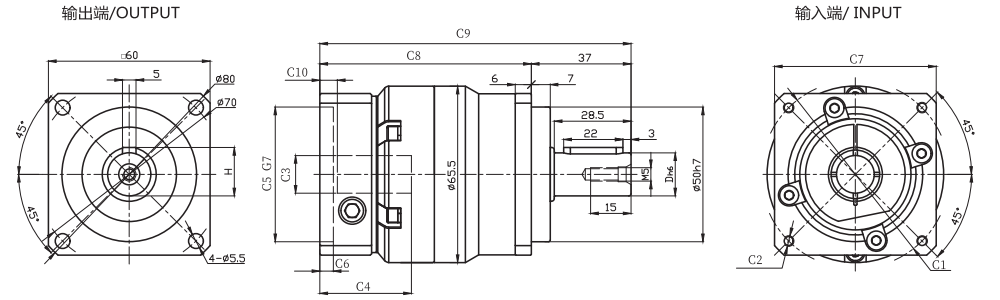

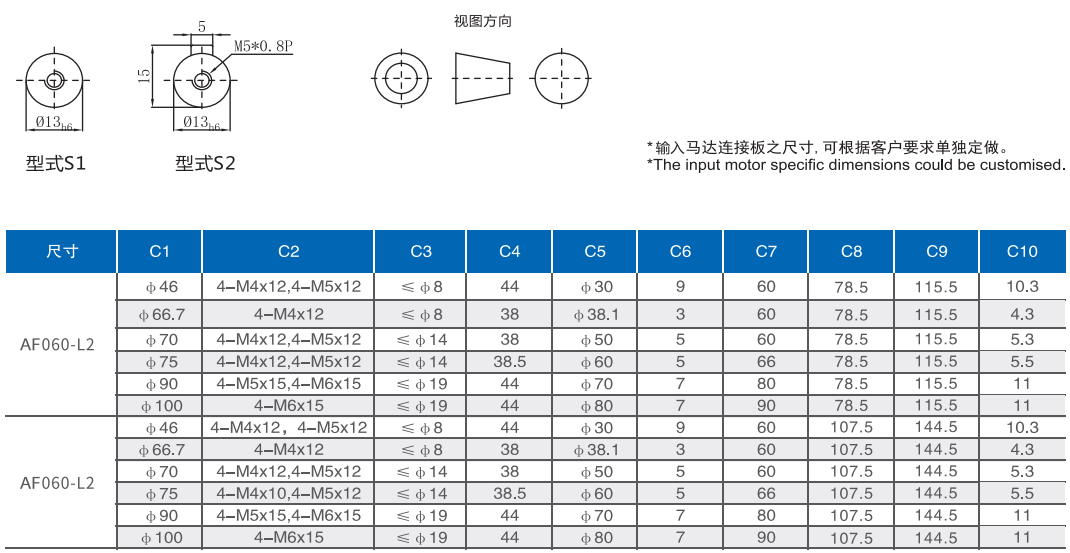

AF060-L1
AF060-L2
輸出軸徑/Output Diameter
* C1~C10是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C10are motor (metric standard) specific dimensions, which could be customised.

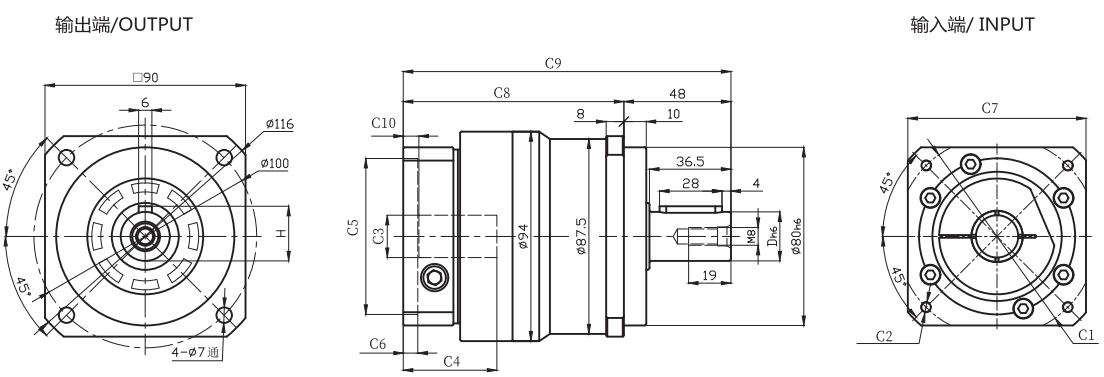

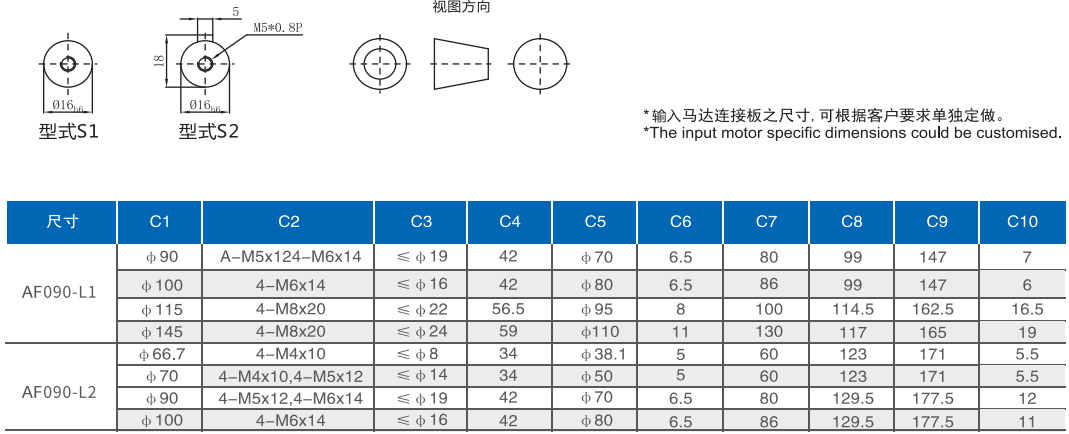

AF090-L1
AF090-L2
輸出軸徑/Output Diameter
* C1~C10是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C10are motor (metric standard) specific dimensions, which could be customised.

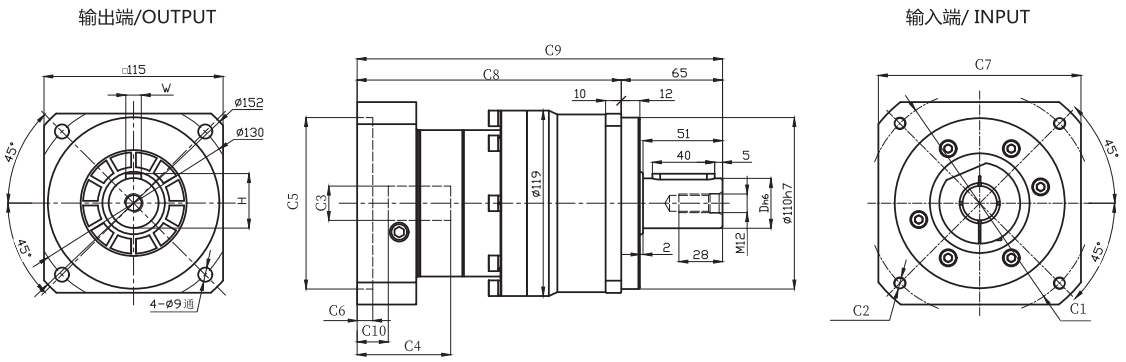

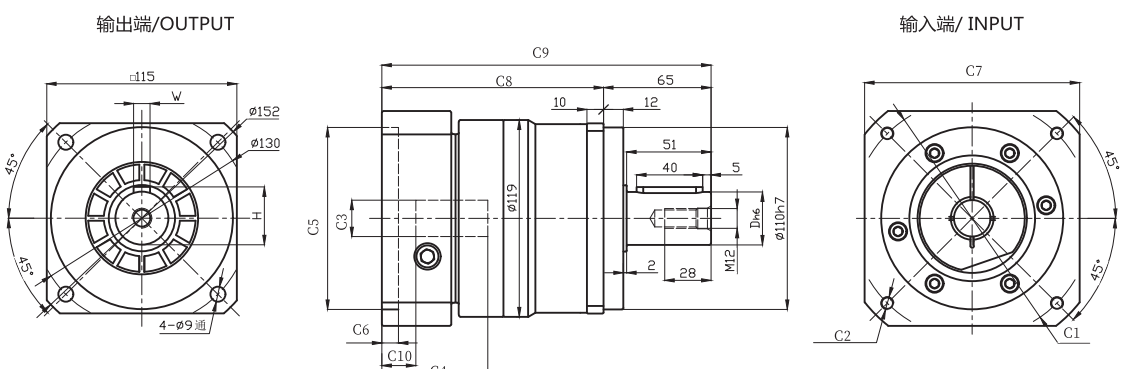

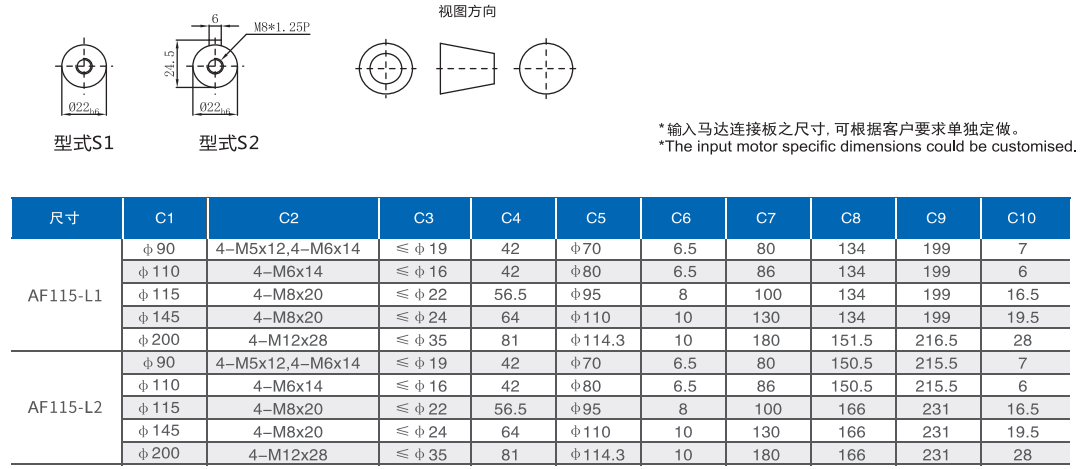

AF115-L1
AF115-L2
輸出軸徑/Output Diameter
* C1~C10是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C10are motor (metric standard) specific dimensions, which could be customised.

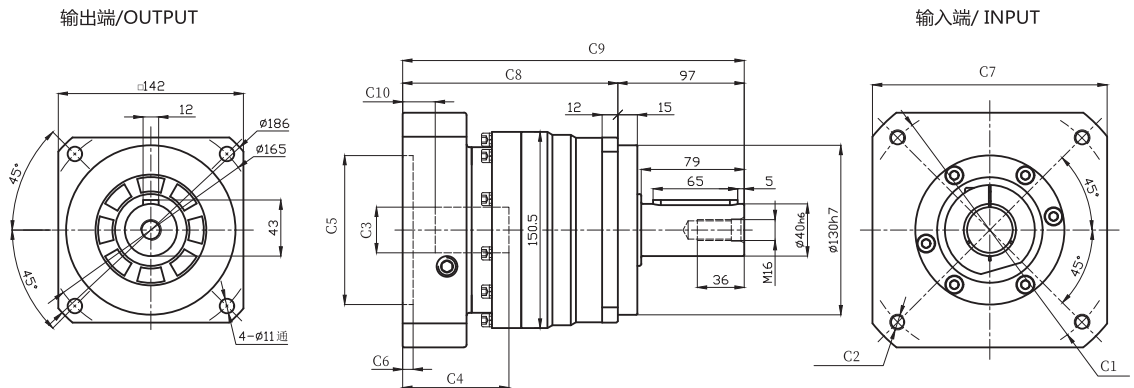

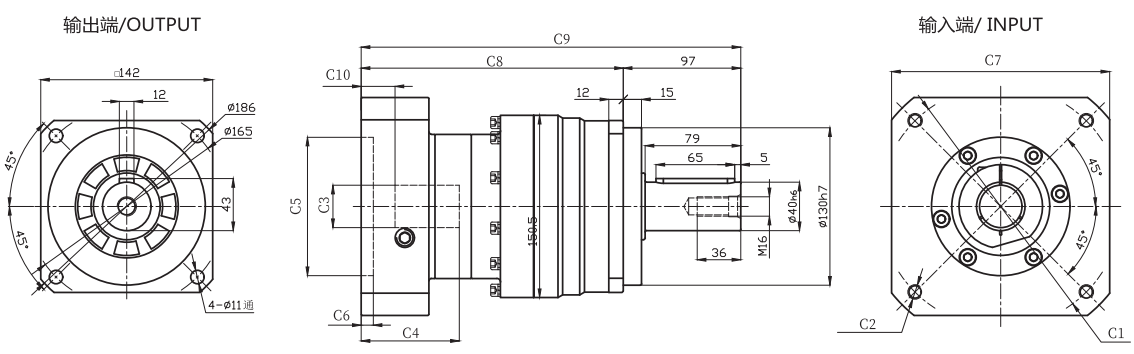

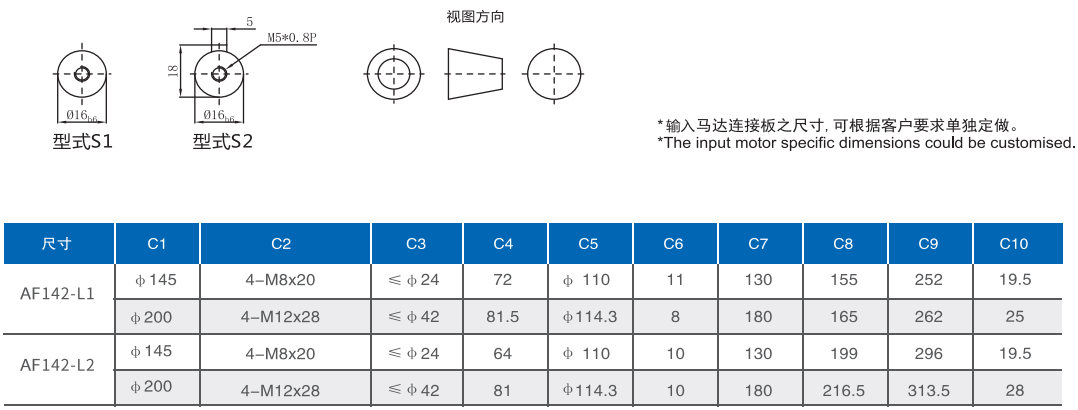

AF142-L1
AF142-L2
輸出軸徑/Output Diameter
* C1~C9是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C9 are motor (metric standard) specific dimensions, which could be customised。
AF系列減速機核心特性
The Core features of PEH series reducer
1.采用斜齒齒輪傳動，經滲碳淬火處理，齒向齒廓修形處理，確保運行低噪音、平穩;承載能力較直齒提高20%;
2.整體式輸出軸，行星輪兩端軸承支撐，實現高精度、高強度;
3.回程間隙小，單級可以做到3arcmin以內;
1. Helical gear transmission, carburizing and quenching treatment, tooth profile modification treatment, Ensure low noise and stable operation; The bearing capacity is 20% higher than that of straight teeth;
2. The integral output shaft is supported by bearings at both ends of the planetary gear to achieve high precision and high strength;
3. The return clearance is small, and the precision single stage can reach within 3 arcmin:
型號說明/ MODEL ILLUMINATE
FILLINDATA OF MOTOR 客戶填寫資料
規格 SPECIFICATIONS
減速機性能資料/ GEAR BOX PERFORMANCE INFORMATION
外形尺寸圖表/ OUTLINE DIMENSION SHEET
AF060-L1
AF060-L2
輸出軸徑/Output Diameter
* C1~C10是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C10are motor (metric standard) specific dimensions, which could be customised.
AF090-L1
AF090-L2
輸出軸徑/Output Diameter
* C1~C10是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C10are motor (metric standard) specific dimensions, which could be customised.
AF115-L1
AF115-L2
輸出軸徑/Output Diameter
* C1~C10是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C10are motor (metric standard) specific dimensions, which could be customised.
AF142-L1
AF142-L2
輸出軸徑/Output Diameter
* C1~C9是公制標準馬達連接板之尺寸,可根據客戶要求單獨定做。
* C1~C9 are motor (metric standard) specific dimensions, which could be customised。
